ECS - Current Controlled Screwdriver
ECS4 product photo

ECS4

6151654450

ECS-current controlled In-line screwdriver-1Nm to 4Nm, Hex 1/4F output

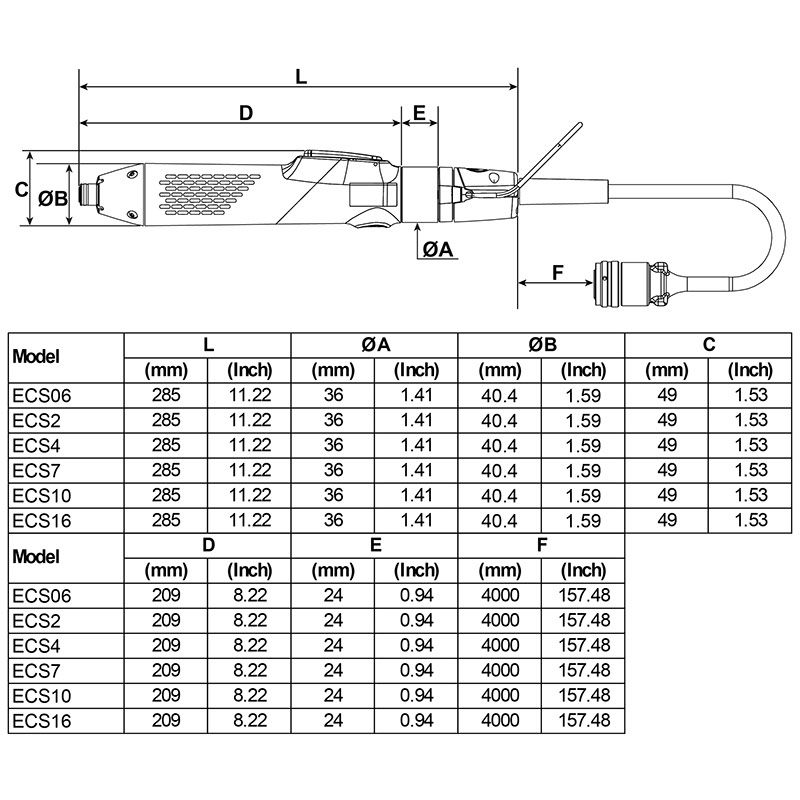

dimention
Package Dimensions 39 x 39 x 9.5 cm
weight
Package Weight 1.99 kg
ECS4
The ECS4 current controlled screwdriver offers you precision, durability and control. Its brushless motor and durable long-life gears ensure exceptional reliability and minimal maintenance, resulting in low lifecycle costs, with 1Nm to 4Nm, 2000 rpm and Hex 1/4F output. This tool is compatible with CVIC II-L2, CVIC II-H2 and CVIR controllers. The integrated current control technology, supported by intuitive software, enables precise and versatile tightening strategies - all with a single tool.
Country of origin is FR. Customs tariff is 84672985
ECS4 product photo
ECS4 product photo
ECS4 product photo

Benefits

High reliability and low maintenance thanks to it brushless motor and long life gears, ensuring low lifecycle costs.
Easy integration through the M20 thread
Easily programmable to fit the application
Programmable to change to push start, lever start or remote start to reduce your installed tool base – depending on the reference.
Current control technology, complimented by a software, offering multiple accurate tightening possibilities with just one tool.
Easy integration through the M20 thread - for the relevant references

Features

3 versions available (spindle, straight and angle-head)
Brushless motor and long life gears
3 coloured LED’s
Push start, lever start or remote start available on all references
2 controllers: CVIC or CVIR
M20 interface available on some references
ECS4 product photo

ECS4

ECS-current controlled In-line screwdriver-1Nm to 4Nm, Hex 1/4F output
