EFD – Tranducerized in-line spindle
EFDE 60-250 product photo

EFDE 60-250

6151658720

Tranducerized fixture spindle, removable teles shaft-55-280Nm-Sq 3/4

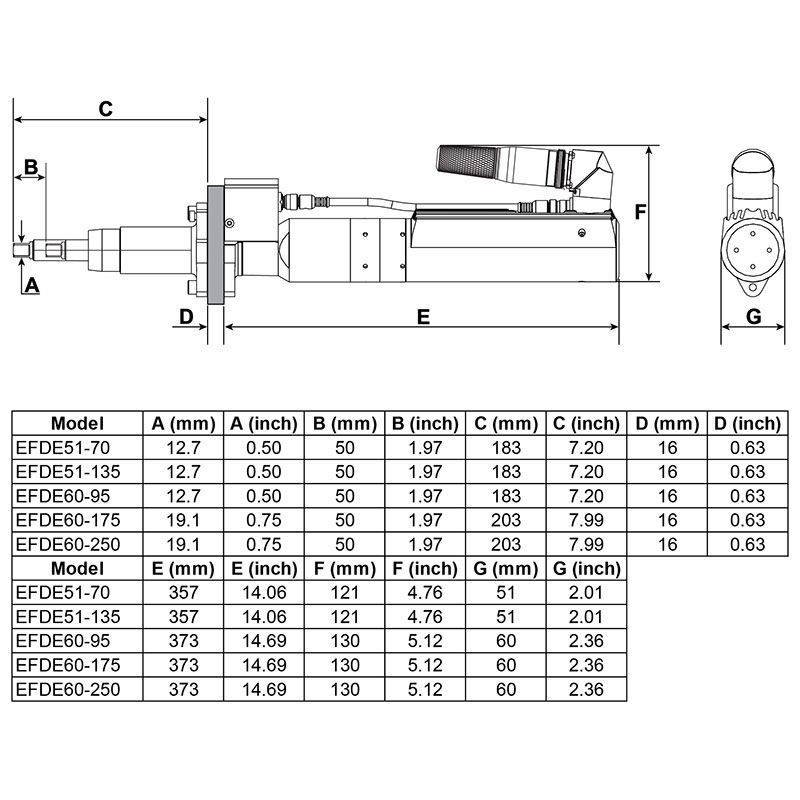

dimention
Dimensions 79 x 19 x 16.5 cm
weight
Weight 8.35 kg
THIS PRODUCT IS UNAVAILABLE
This product is out of production or unavailable for purchase.Contact us if you need support on this.
EFDE 60-250
Whether your process requires a single or multiple synchronised spindles, Desoutter’s EFD Tranducerized in-line Spindle, with removable telescopic shaft offers you exceptional accuracy Featuring an angle sensor and high speed brushless electric motor to ensure best in class repeatability. What’s more the compact design and 300o cable rotation makes integration easy. Whatever your application, the Desoutter EFD with a CVI3 controller offers you outstanding reliability and full Industry 4.0 tightening data.
Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

Benefits

Accurate torque and angle control ensuring the quality of each tightening and reducing your potential warranty costs.
Compact and light design with a fixture flange for easy integration to lower installation cost.
Built in transducer, complimented by innovative software, offering multiple tightening possibilities with just one tool.
High reliability and low maintenance thanks to it 6 pole brushless motor and long life gears, ensuring low lifecycle costs.
Double strain gauge transducer with high frequency angle sensor for high accuracy and repeatability to maximise your quality.
Complete Plug and play solution, with the CVI3 platform, for unrivalled flexibility and quick setup to lower installation cost.
EFDE 60-250 product photo

EFDE 60-250

Tranducerized fixture spindle, removable teles shaft-55-280Nm-Sq 3/4
