EFD - Electric Fixtured Direct Nutrunner

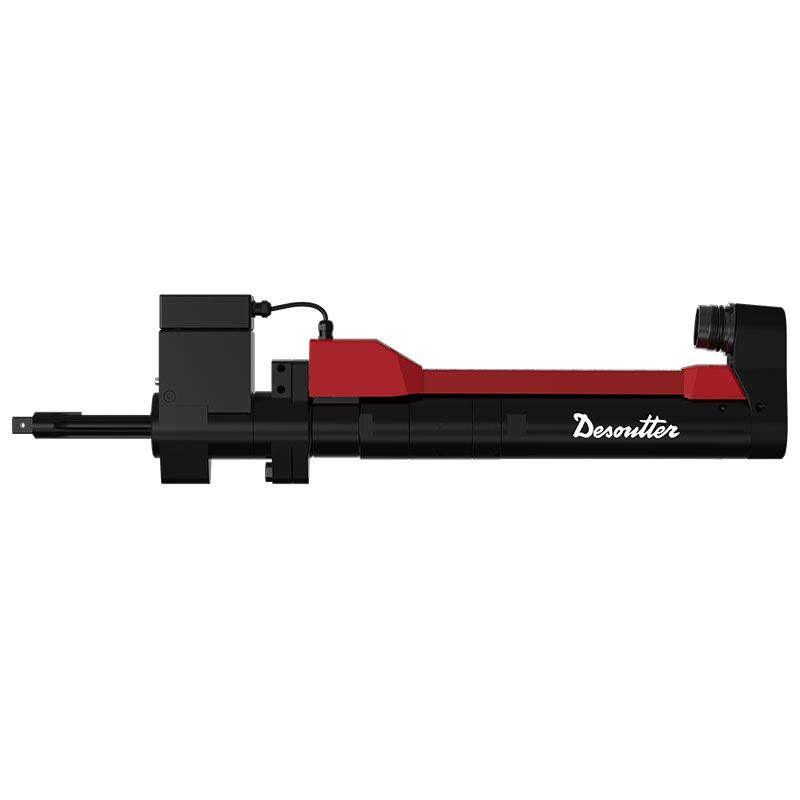

EFD51-70-TA product photo

EFD51-70-TA

6151662560

Electric Fixtured Direct In-Line Double Transducer - 20Nm to 80Nm - Sq ouput 1/2
dimention
Dimensions 99 x 30.5 x 19.5 cm
weight
Weight 8 kg
EFD51-70-TA
Whether your process requires a single or multiple synchronised spindles, Desoutter’s Offset fixtured spindle EFD51-70-TA offers you an exceptional accuracy from 20Nm to 80Nm. It features an high quality angle sensor and torque transducer for better repeatability. High performance motor to secure best in class productivity but also a compact design and 300° cable rotation for an easier integration
Warning

This product can expose you to chemicals including lead, which is known to the state of California to cause cancer and birth defects or other reproductive harm. For more information go to http://www.P65warnings.ca.gov.

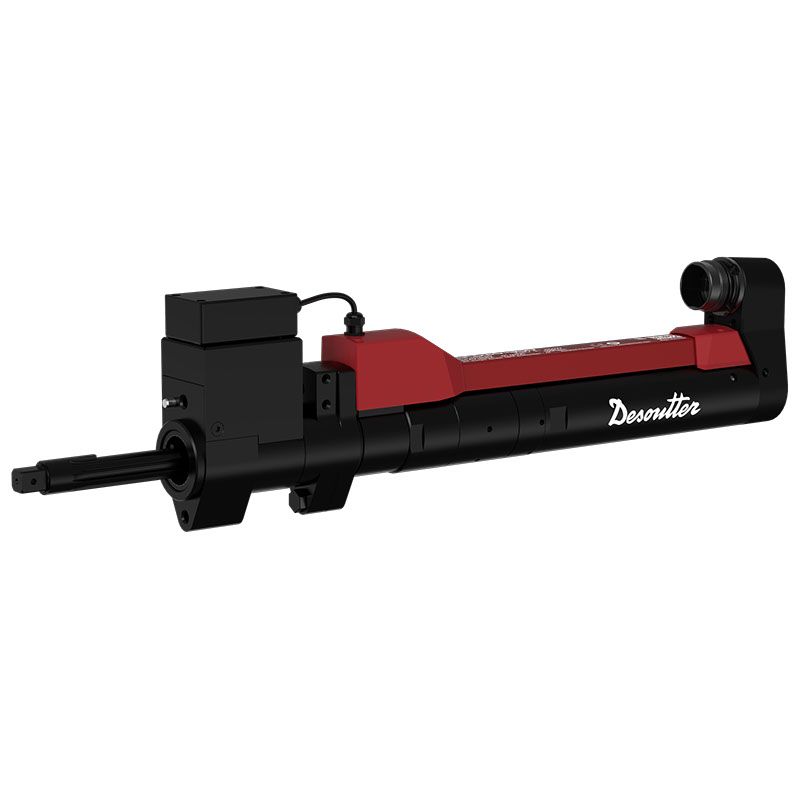

EFD51-70-TA product photo

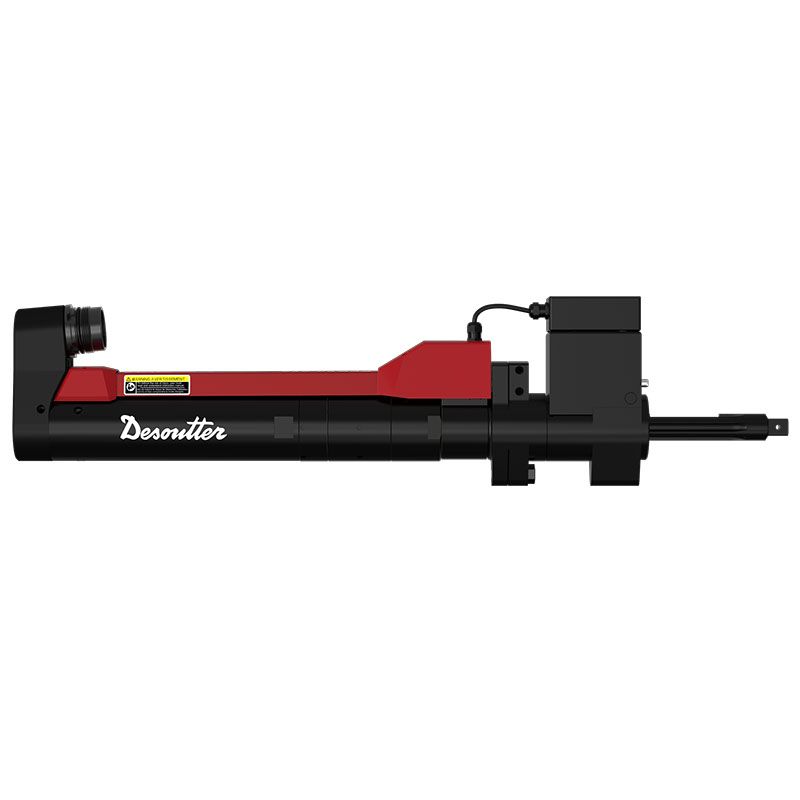

EFD51-70-TA product photo

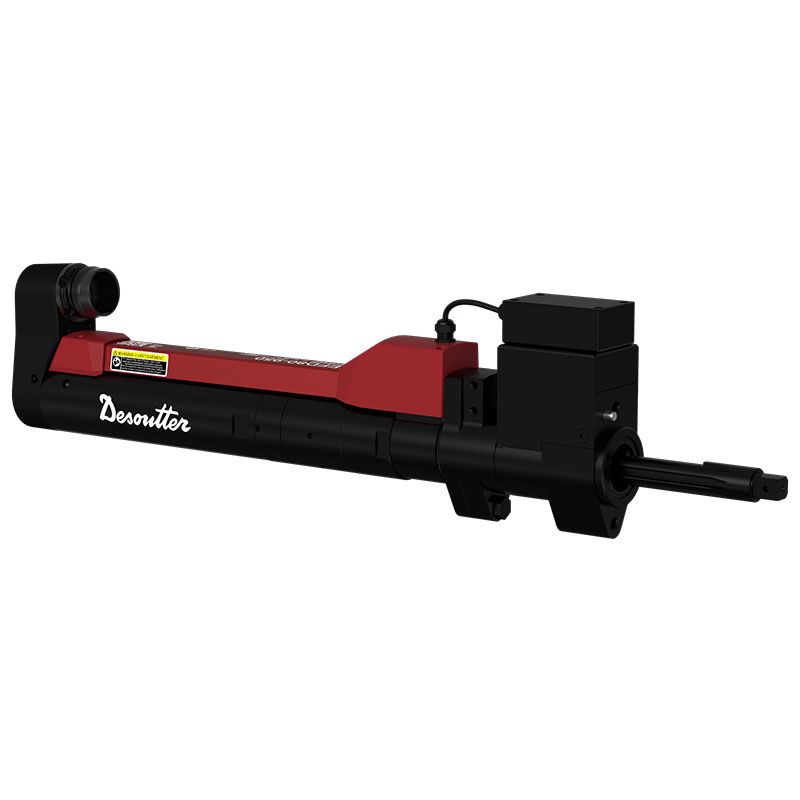

EFD51-70-TA product photo
EFD51-70-TA product photo

Included Items

1 EFD51-70-TA

Benefits

Accurate torque and angle control ensuring top quality of every tightening
Easy integration for lower installation cost.
Multiple tightening strategies with just one tool.
High reliability, low maintenance and reduced lifecycle costs.
Augmented accuracy and repeatability.
Unrivalled flexibility and quick setup
Variants : inline, angle headed, offset, simple transducerized, double transducerized
Perfect fit for automated machines
IP54 for the most demanding applications
Orientable cable connector

Features

High quality angle sensor and torque transducer
Compact and light design
Built in transducer, complimented by innovative software,
High quality components and proven design
High frequency angle sensor
Complete Plug and play solution
All compatible with AXON Terminal and the CVI3 platform.
Optional IP54 kit
EFD51-70-TA product photo

EFD51-70-TA

Electric Fixtured Direct In-Line Double Transducer - 20Nm to 80Nm - Sq ouput 1/2
